6A Ultra Fast Charge
BS360A-7206

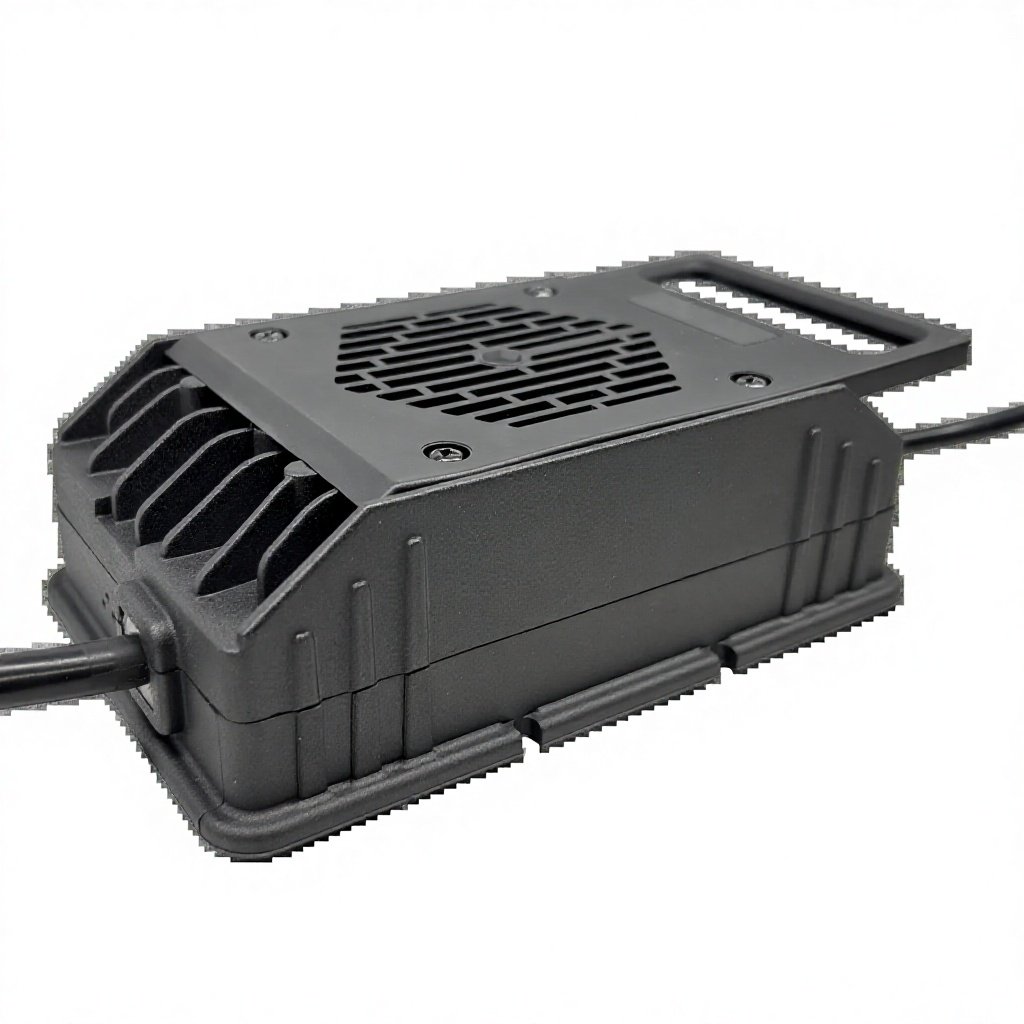

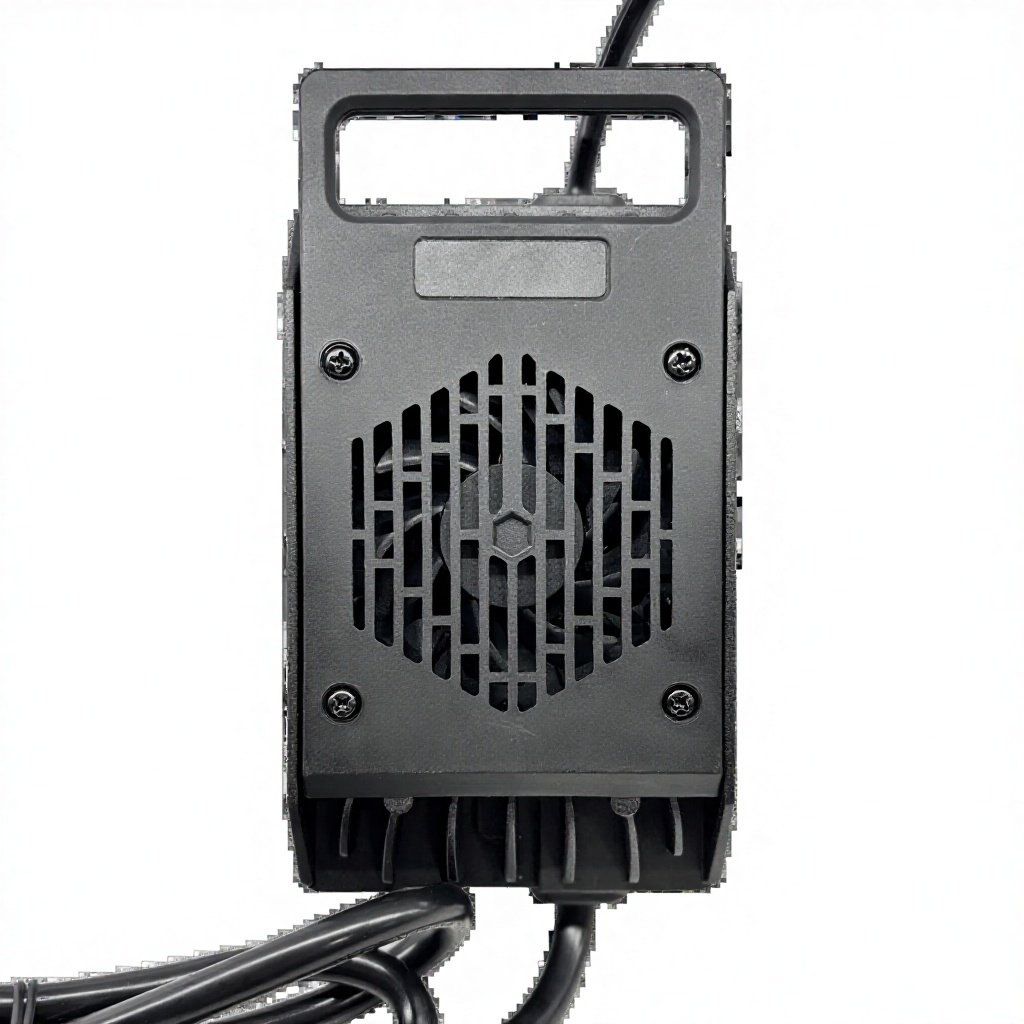

72V 6A High-Current Professional Battery Charger for Electric Motorcycles
ModelBS360A-7206
Input Voltage110 ~ 240 Vac (Global)
Output Voltage60-88Vdc
Output Current6A
Efficiency93%
IP RatingIP65 (Fully Sealed)
High-Performance Features
- 6A High-Current Output: Significantly reduces charging time for large 72V battery packs.
- Integrated Handle: Built-in ergonomic handle for superior portability.
- IP65 All-Weather Design: Fully sealed against dust and moisture.
- Shock-Resistant Protection: Elevated bottom frame protects against impacts and scratches.
- Global Compatibility: Auto-sensing 110V-240V universal input.
The BS360A-7206 is our top-tier charger for 72V electric motorcycles, offering 6A fast charging in a compact, rugged housing. With 93% conversion efficiency, it provides high-speed energy delivery with minimal heat generation.
Industrial-Grade Reliability
- Over-Temperature: Active monitoring with thermal shutdown.
- Reverse Polarity: Safe disconnect protection.
- No-Load Safety: Zero output when idle.
- Short-Circuit: Rapid disconnection and auto-recovery.
- Full-Charge Auto Shutdown: Smart termination.
- UL Certified: Global safety compliance.
