Marine
BS150A-1210-2P Series

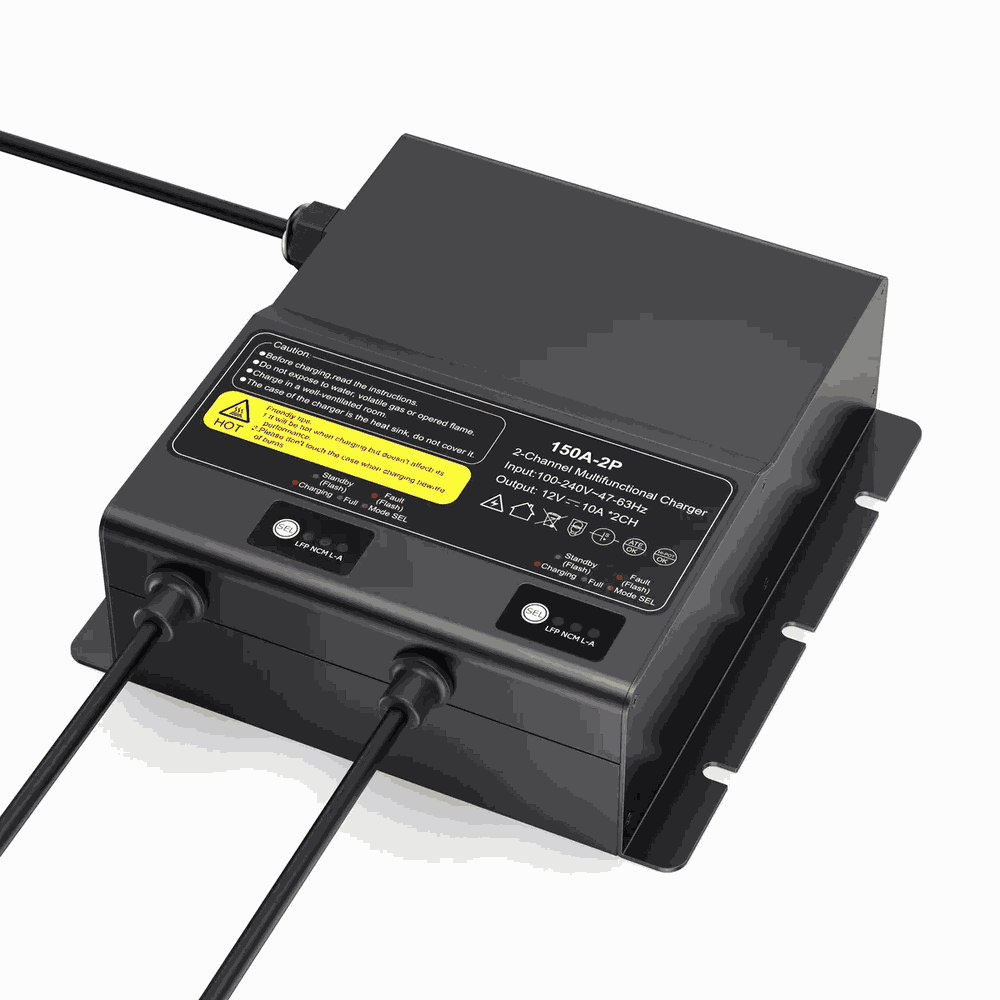

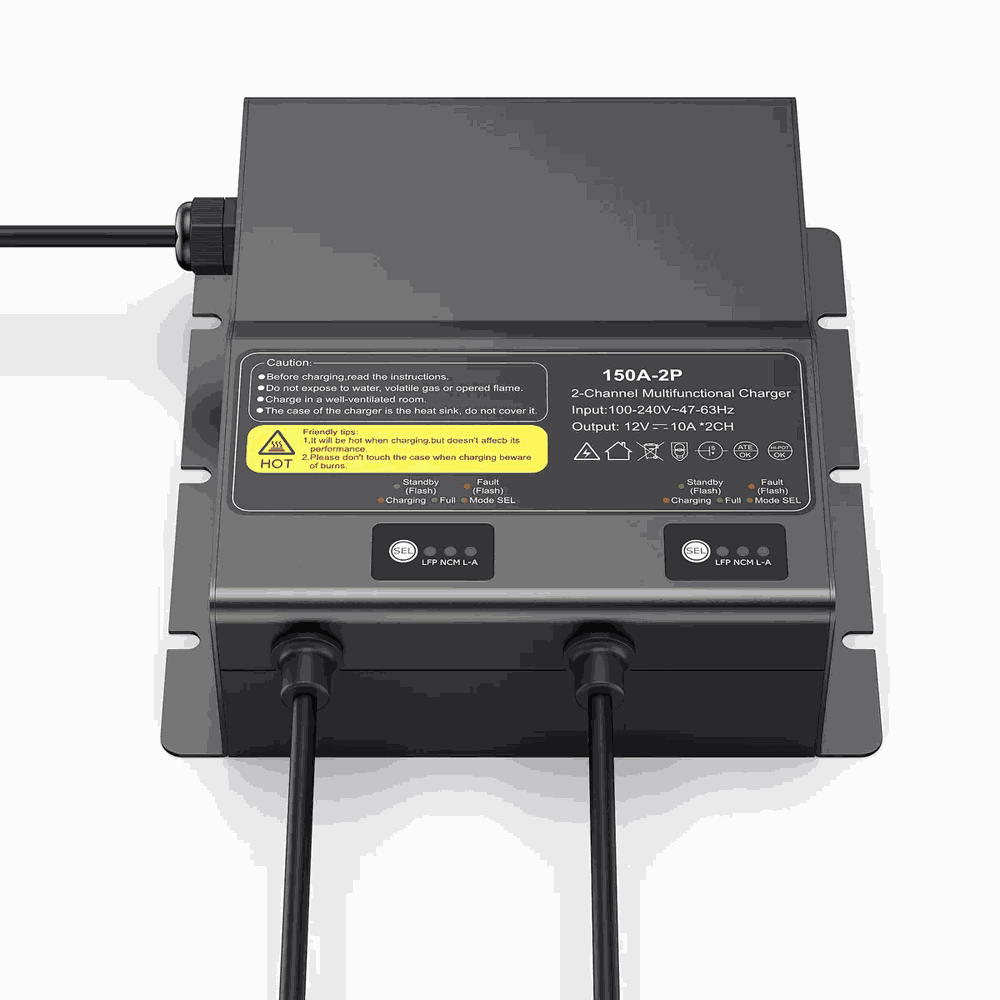

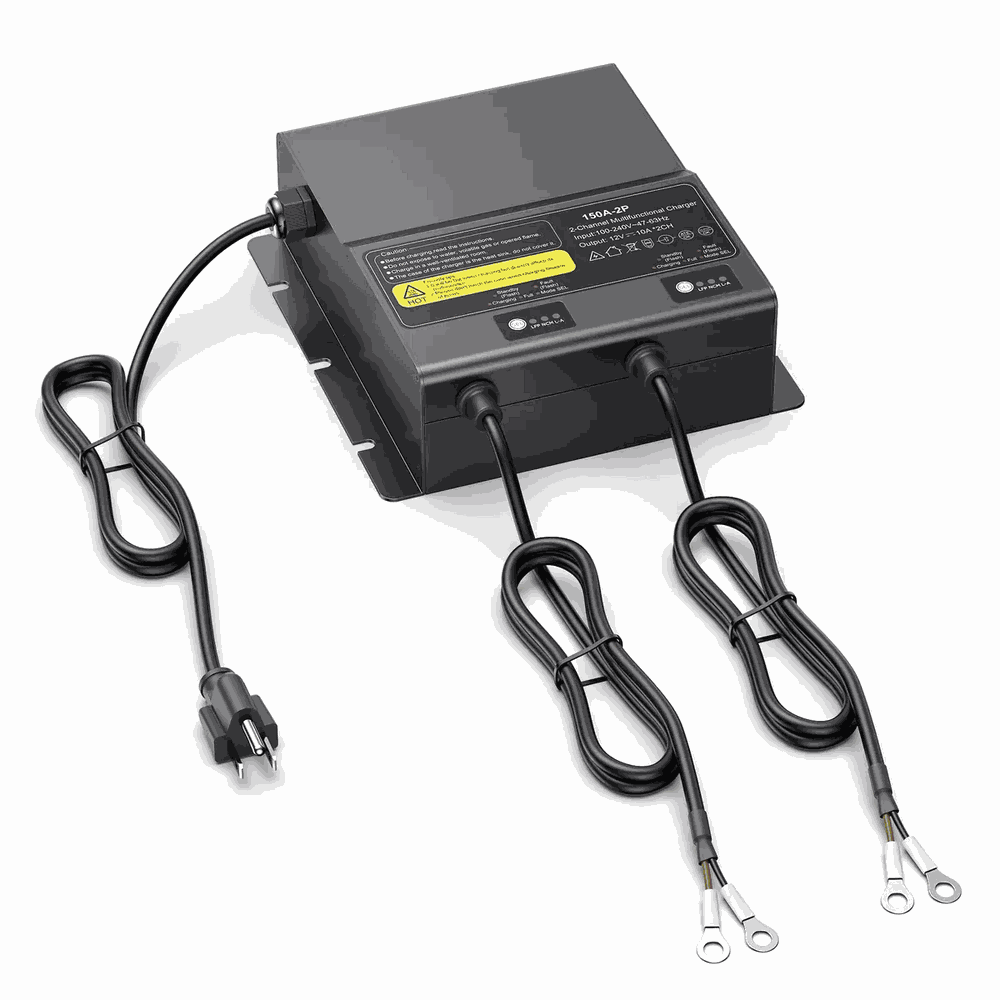

12V 10A x2 Marine Dual-Channel Battery Charger (240W)
Power240W (120W per channel)
Output12V / 10A x2 Channels
Output Voltage12-14.7Vdc per channel
Channels2 Independent Outputs
Input100-240Vac
Max Input Current3A@220Vac
Efficiency87%
Noise≤45dB
WaterproofIP65
Battery TypesLead-acid, Gel, AGM, Sodium
Dimensions220×140×70mm
Weight1.72 KG
Operating Temp-20~45°C
Storage Temp-40~85°C
Key Features
- 2 Independent Charging Channels - Charge 2 batteries simultaneously without interference
- IP65 Waterproof - Designed for marine environments with salt spray resistance
- 3-colour LED Indicator - Shows charging status for each channel
- Wide Input (100-240Vac) - Compatible worldwide with universal mains
- Over-temperature Protection - Auto shutdown on overheating
- Multi-protection: OTP, Reverse Polarity, Short-circuit, Over-voltage
- Lightweight 1.72KG - Easy to install on vessels with limited space
Applications
Application Scenarios
Marine Dual-Battery Systems
2 independent 12V/10A channels allow simultaneous charging of 2 separate batteries - ideal for boats with separate starting and house battery banks.
Marine Saltwater Environment
IP65 waterproof and salt-spray resistant design makes it suitable for deck installation on sailboats, yachts, and fishing vessels operating in marine environments.
Lightweight Marine Applications
Compact (220×140×70mm) and lightweight (1.72KG) design makes it ideal for small to medium vessels where weight and space are at a premium.
